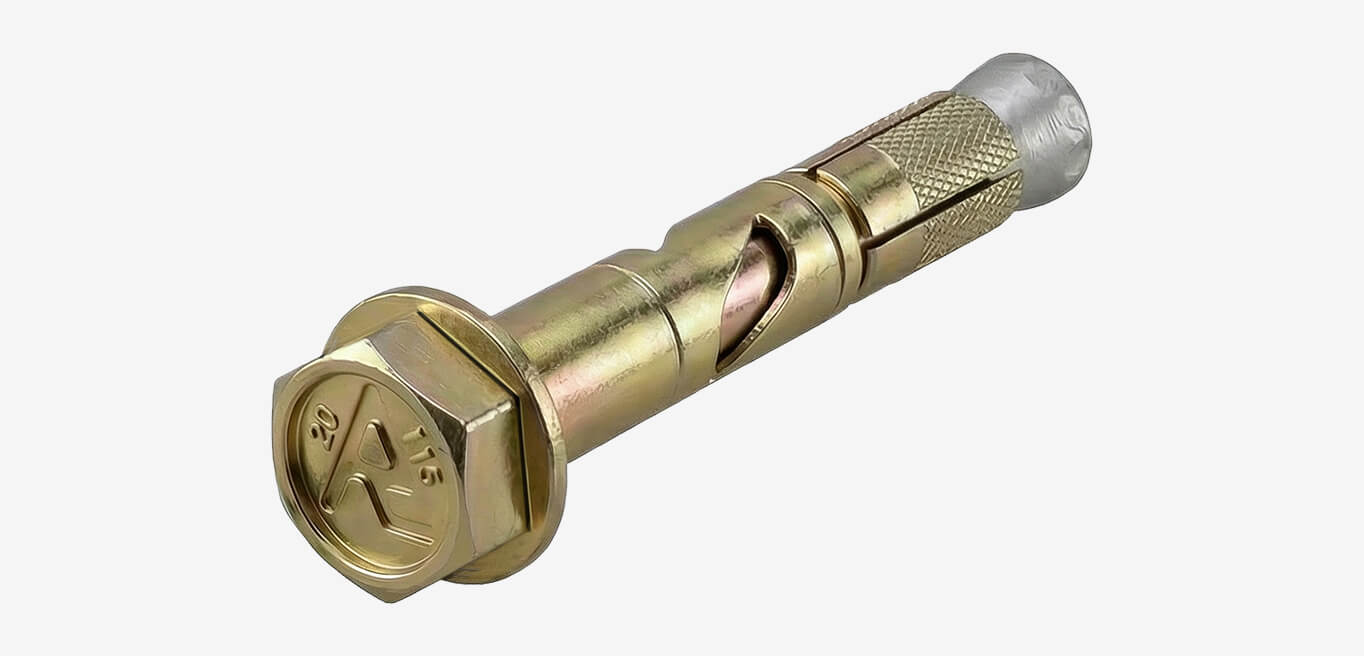

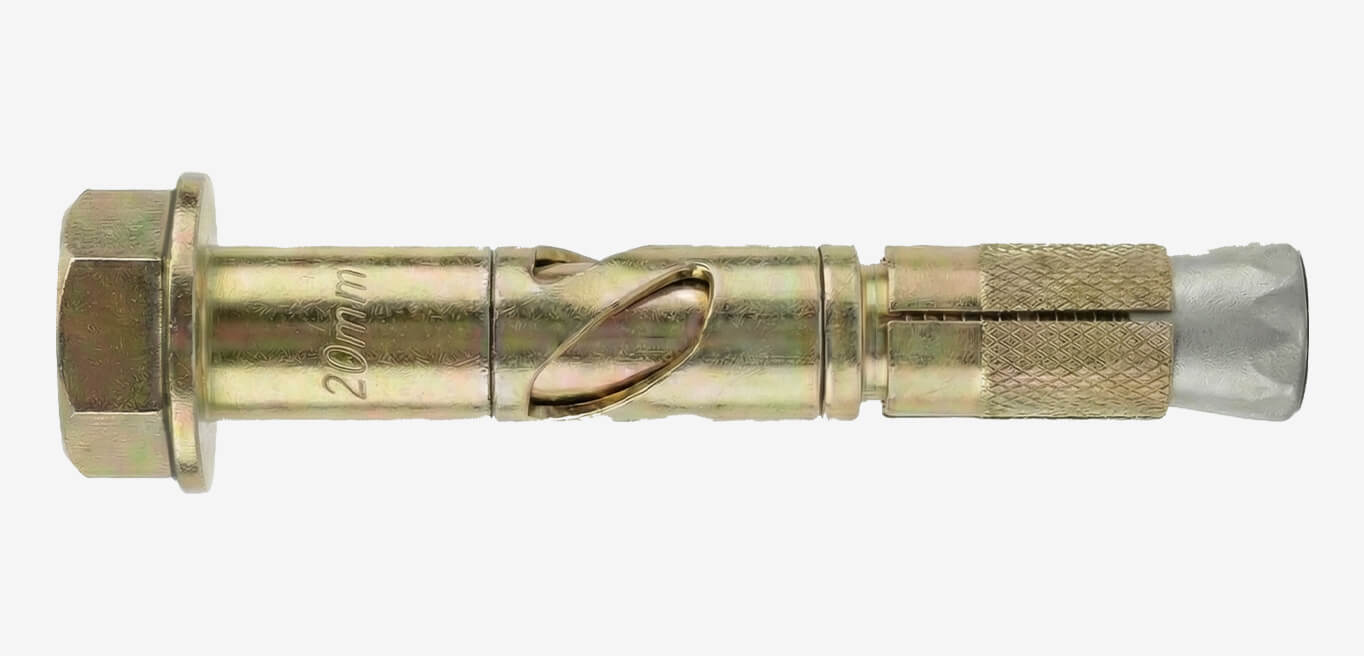

Ramset™ BraceSet™ Bracing Anchor
The Ramset™ BraceSet™ Bracing Anchor is a heavy duty, load controlled torque setting expansion anchor designed for anchoring the slotted feet of concrete wall panel braces at either end of the brace. BraceSet™ provides high tensile and shear capacities, uses a common 30 mm AF hex head socket, and is designed for simple removal after use.
Description
- Ramset™ BraceSet™ Bracing Anchor
Before visiting a Stockist or Service Centre, contact them to ensure product availability.
PART NUMBER:
Ramset™ BraceSet™ Bracing Anchor
Contact Details
-+PRODUCT INFORMATION
Click on the column headings to reorder the table.
| ITEM CODE | Description | Anchor Size | Tensile Capacity | Shear Capacity | Pack Quantity | Pallet Quantity | ADD TO TOOLBOX |
|---|---|---|---|---|---|---|---|
| BRACESET20 | Ramset™ BraceSet™ Bracing Anchor | M14 | 16.8 kN | 43.4 kN | 40 | 1920 |
STEEL ZINC PLATED
STAINLESS STEEL
GALVANISED STEEL
The selected variations added in the toolbox. Please view the items in the toolbox.
-+FEATURES & BENEFITS
- Heavy duty load controlled torque setting expansion anchor
- High tensile and shear capacities

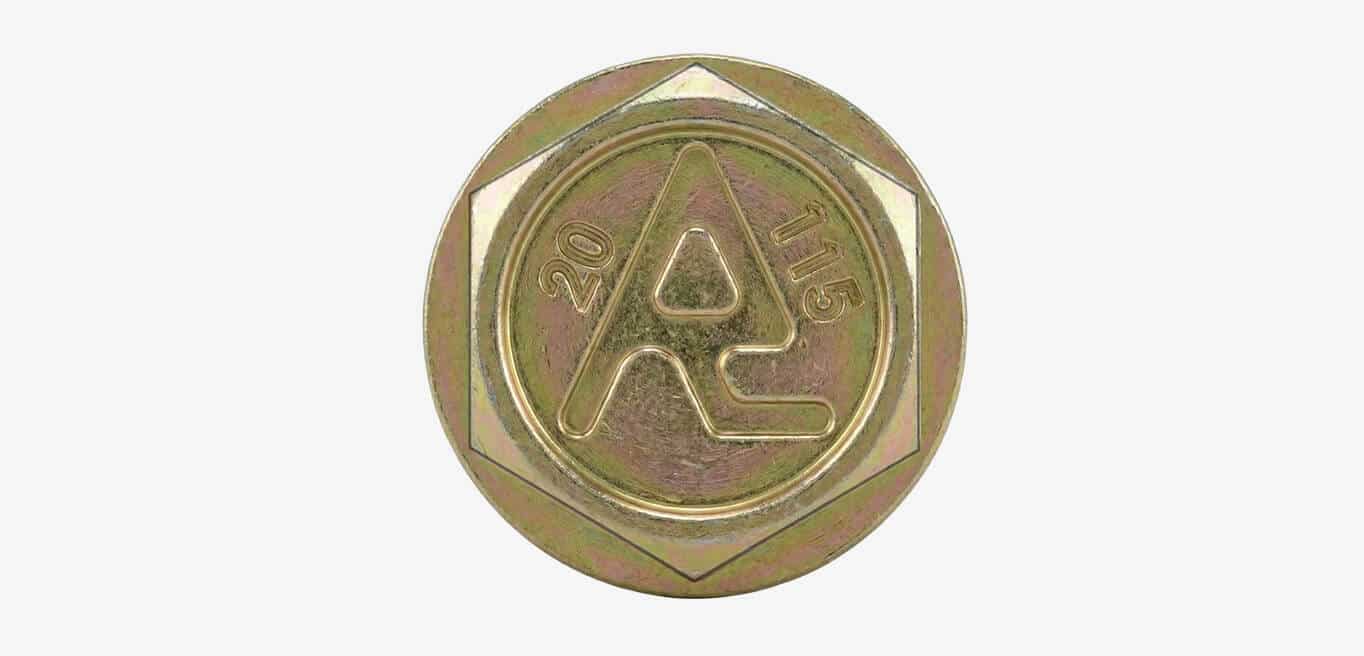

- Uses a common 30 mm AF hex head socket

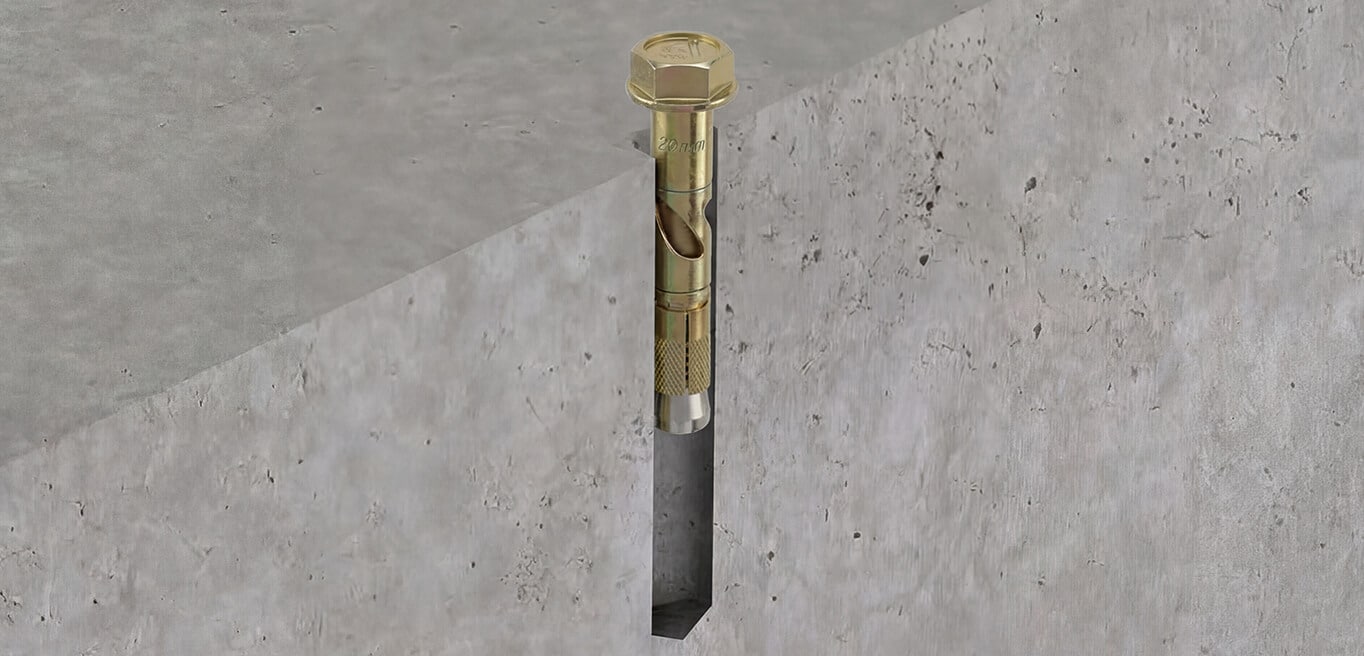

- 20 mm diameter drilled hole
- Suitable for use at either end of a precast panel brace
- Simple removal leaving no messy protrusions
-+APPLICATIONS & TRADES

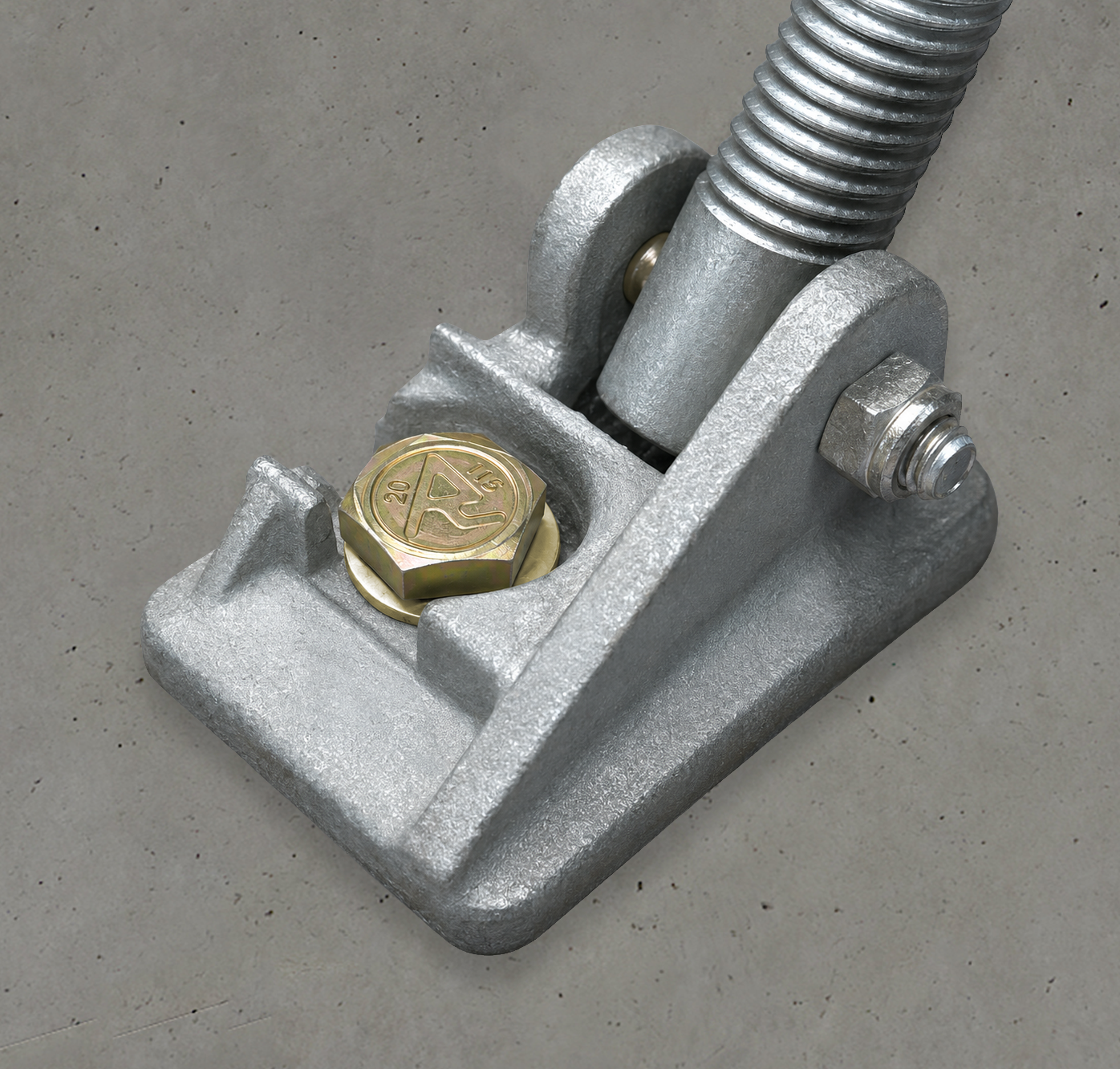

| Anchoring slotted feet of concrete wall panel braces | Precast Contractor, Tilt Up Contractor, Construction Contractor |
|---|---|
| Temporary panel bracing | Precast Installer, Panel Erection Crew |

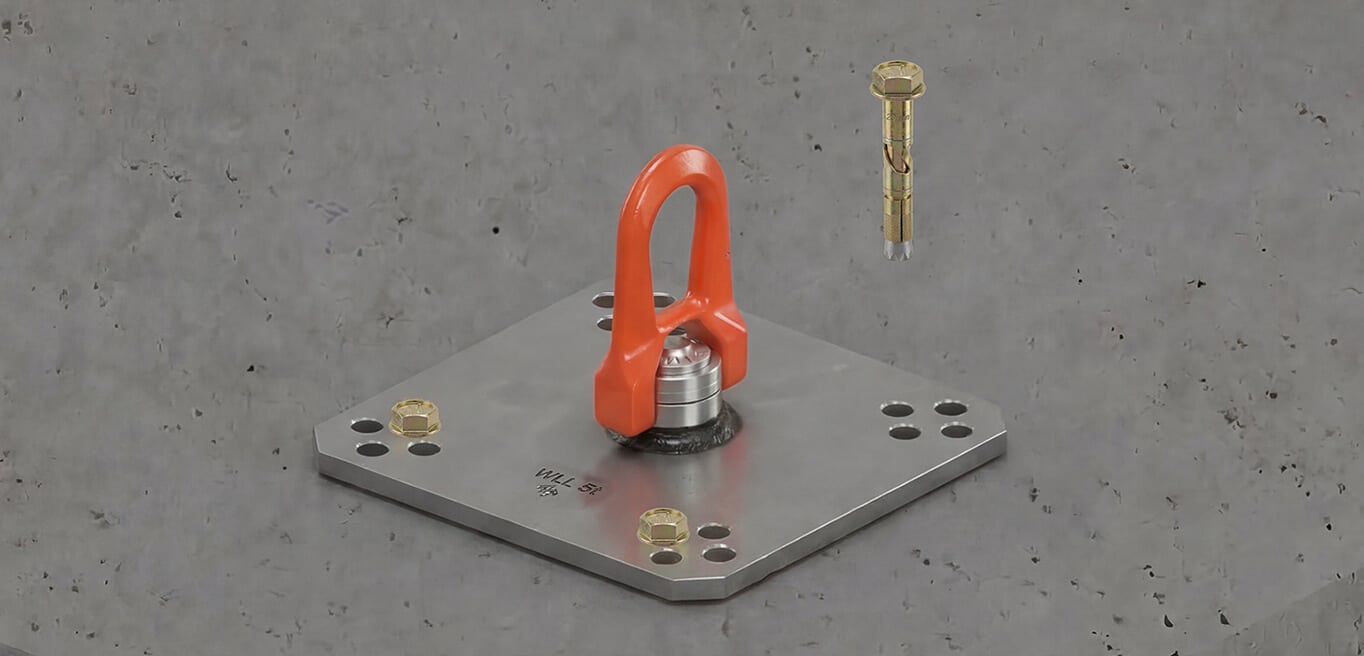

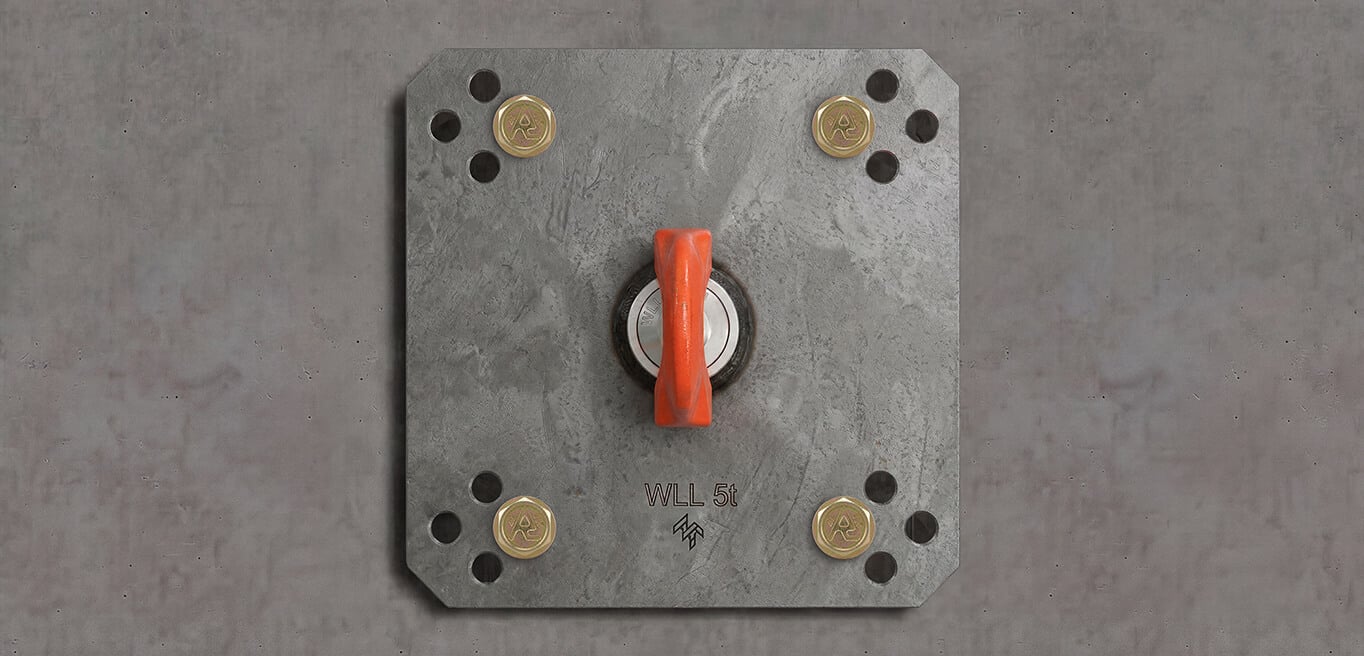

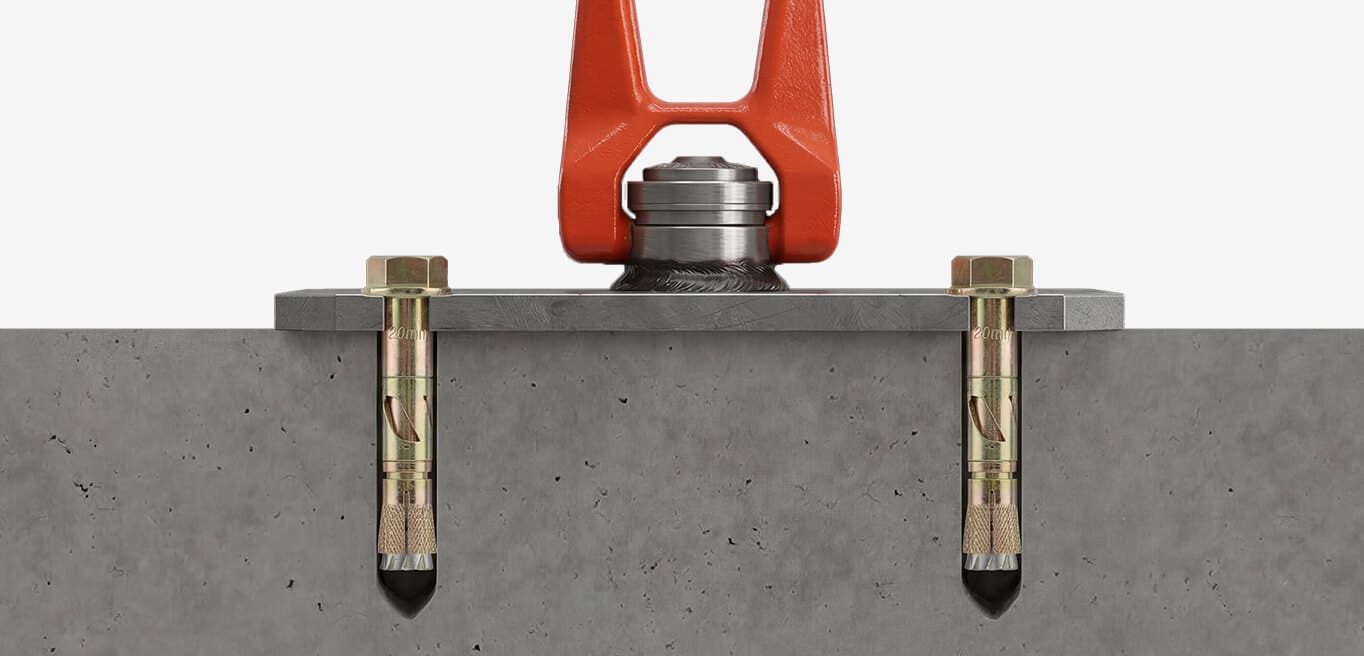

| Lifting plate MPLATE or 5LP applications | Precast Contractor, Construction Contractor |
-+SPECIFICATIONS
| Setting Method | Torque Controlled |
|---|---|
| Anchoring Method | Expansion |
| Substrates | Concrete |
| Relevant Standard | AS 3850.1:2024 |
| Reuse | Single use only |
