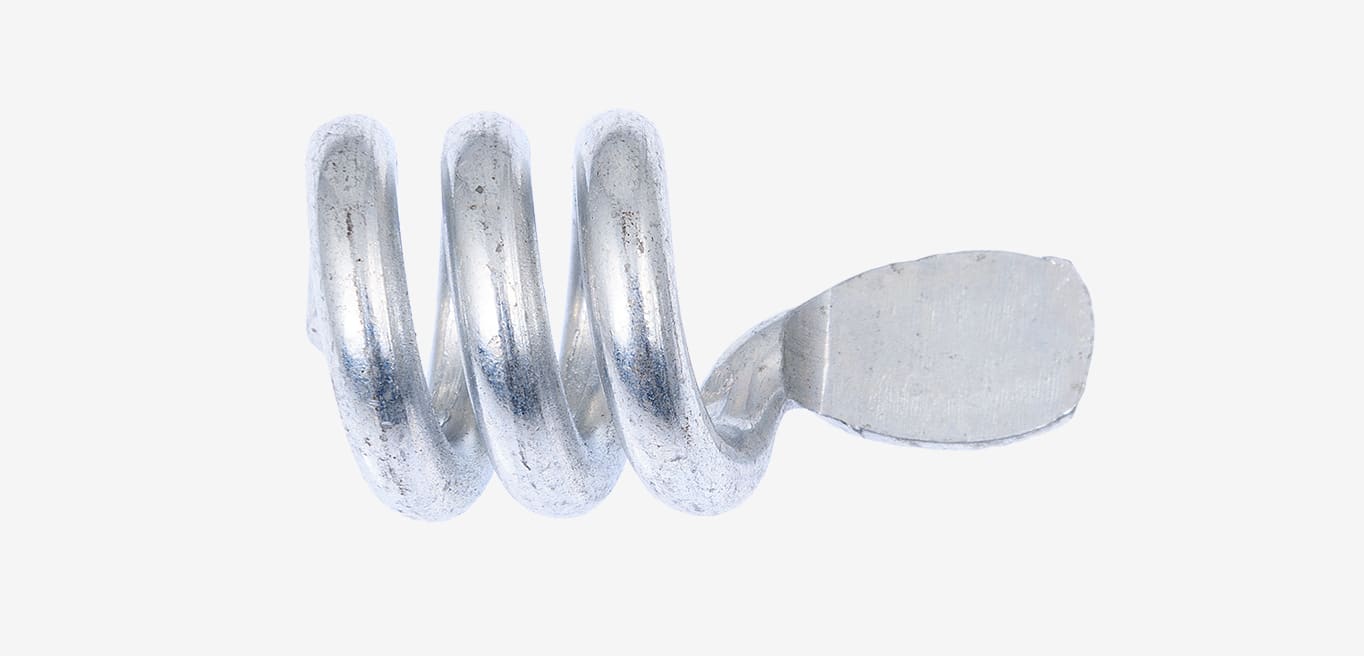

Boa™ Coil Expansion Anchors Hex Bolt
The Boa Coil Expansion Anchor is a removable, high strength, heavy duty, rotation setting expansion anchor for concrete. It is ideally suited for through fixing into concrete when cast-in performance or clean removal is required.
Thread Size
- 13
- 16
- 19
Anchor Length (mm)
- 75
- 90
- 100
- 115
- 125
Before visiting a Stockist or Service Centre, contact them to ensure product availability.
PART NUMBER:
Boa™ Coil Expansion Anchors Hex Bolt
Contact Details
-+PRODUCT INFORMATION
Click on the column headings to reorder the table.
| ITEM CODE | Material | Thread Size | Anchor Length (mm) | Max. Fixture Thickness (mm) | Drilled Hole (mm) | Min. Hole Depth (mm) | Effective Length (mm) | Fixture Hole (mm) | Order Qty | ADD TO TOOLBOX |
|---|---|---|---|---|---|---|---|---|---|---|
| BAC12115 |  | 19 | 115 | 25 | 19 | 120 | 93 | 21 | 20 | |
| BAC10125 | | 16 | 125 | 40 | 16 | 130 | 106 | 19 | 25 | |
| BAC10090 | | 16 | 90 | 12 | 16 | 105 | 71 | 19 | 25 | |
| BAC08100 | | 13 | 100 | 30 | 13 | 100 | 84 | 14 | 50 | |
| BAC08075 | | 13 | 75 | 12 | 13 | 90 | 59 | 14 | 50 |
STEEL ZINC PLATED
STAINLESS STEEL
GALVANISED STEEL
The selected variations added in the toolbox. Please view the items in the toolbox.
-+FEATURES & BENEFITS
- High load capacity is achieved due to the expansion coil locking into the sides of the hole, when set, to give cast-in type performance
- High clamping load and resistance to cyclic loading result from the pulldown effect achieved through the rotation setting action of the anchor
- Low profile hex head provides a neat finish
- Removal is easy, clean and fast, as the expansion coil stays in the hole leaving no protruding metal parts to grind off.
- Bolt can be reused with a new coil
-+APPLICATIONS & TRADES
| Installing handrails, balustrades & saftey barriers | Steel Fabricator |
|---|---|
| Formworker support | Formworker |
| Scaffold support | Scaffold Contractor |
| Anchoring structural steel column/beams | Steel Fabricator |
| Machinery hold down | Maintenance Fitter |
-+SPECIFICATIONS
| Material Bolt | Carbon Steel |
|---|---|
| Corrosion Protection | Zinc Plating |
| Head Styles | Hex |
| Fixing Method | Through Fixture |
| Setting Method | Rotation |
| Anchoring Method | Expansion |
| Substrates | Concrete |
